| Product Attribute | Attribute Value |
|---|---|
| Function | Thermocouple/Voltage - Current Converter |
| Input Type | Thermocouple J/Thermocouple K/Thermocouple T/Thermocouple E/Voltage |
| Module Type | Converter |
| Mounting Type | DIN Rail |
| Number of Channels | 1 |
| Output Type | Current |
| Series | |
| Special Features | Microprocessor Controlled, Simple Adjustable Range Setting (Using Input Signal), Thermocouple Break Detection, Wide Operating Temperature Range, 2-Way Electrical Isolation (I/O & Power) |
| Supply Voltage | 12 to 42 |
| Termination | Screw |
| Type | Temperature Control Modules |
Overview

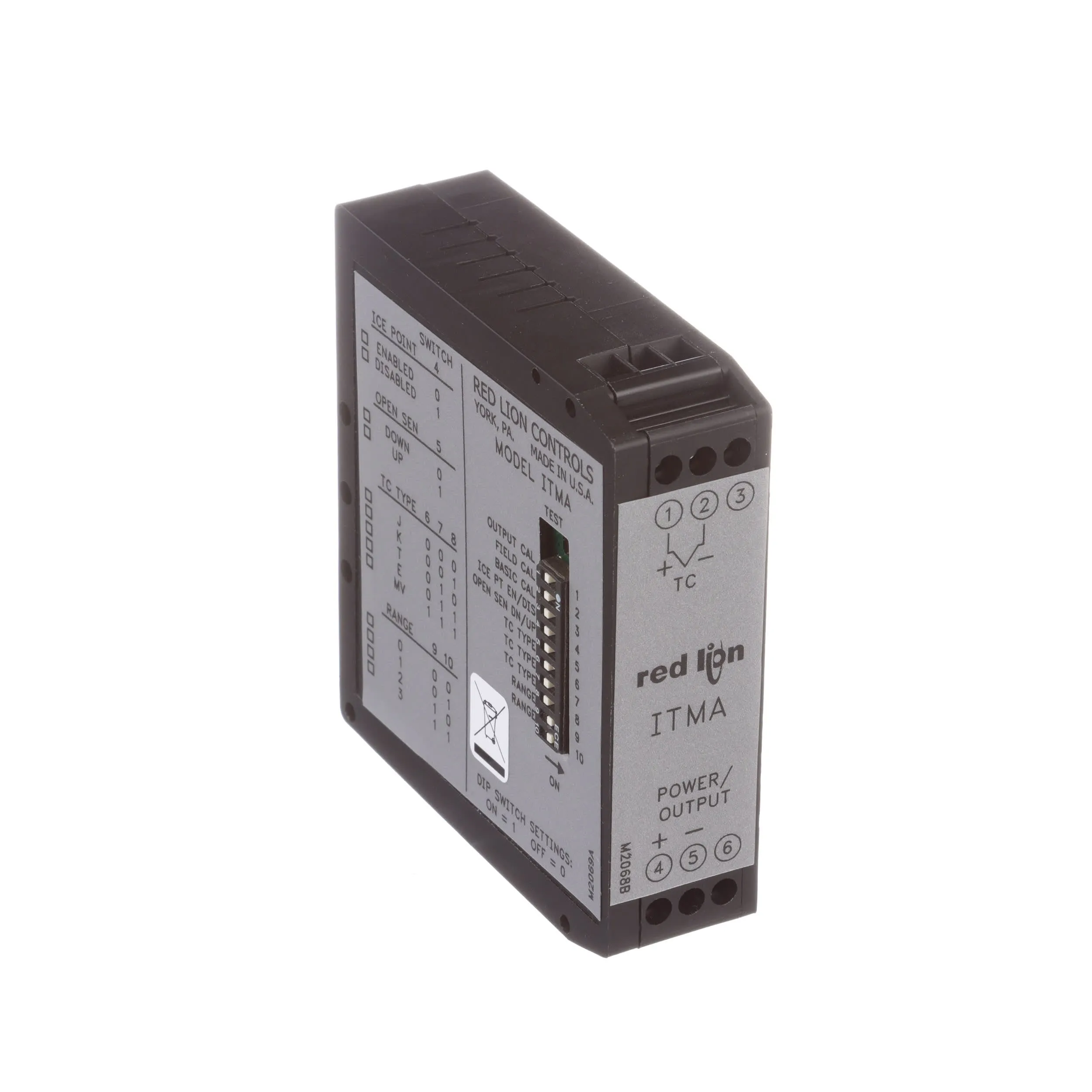

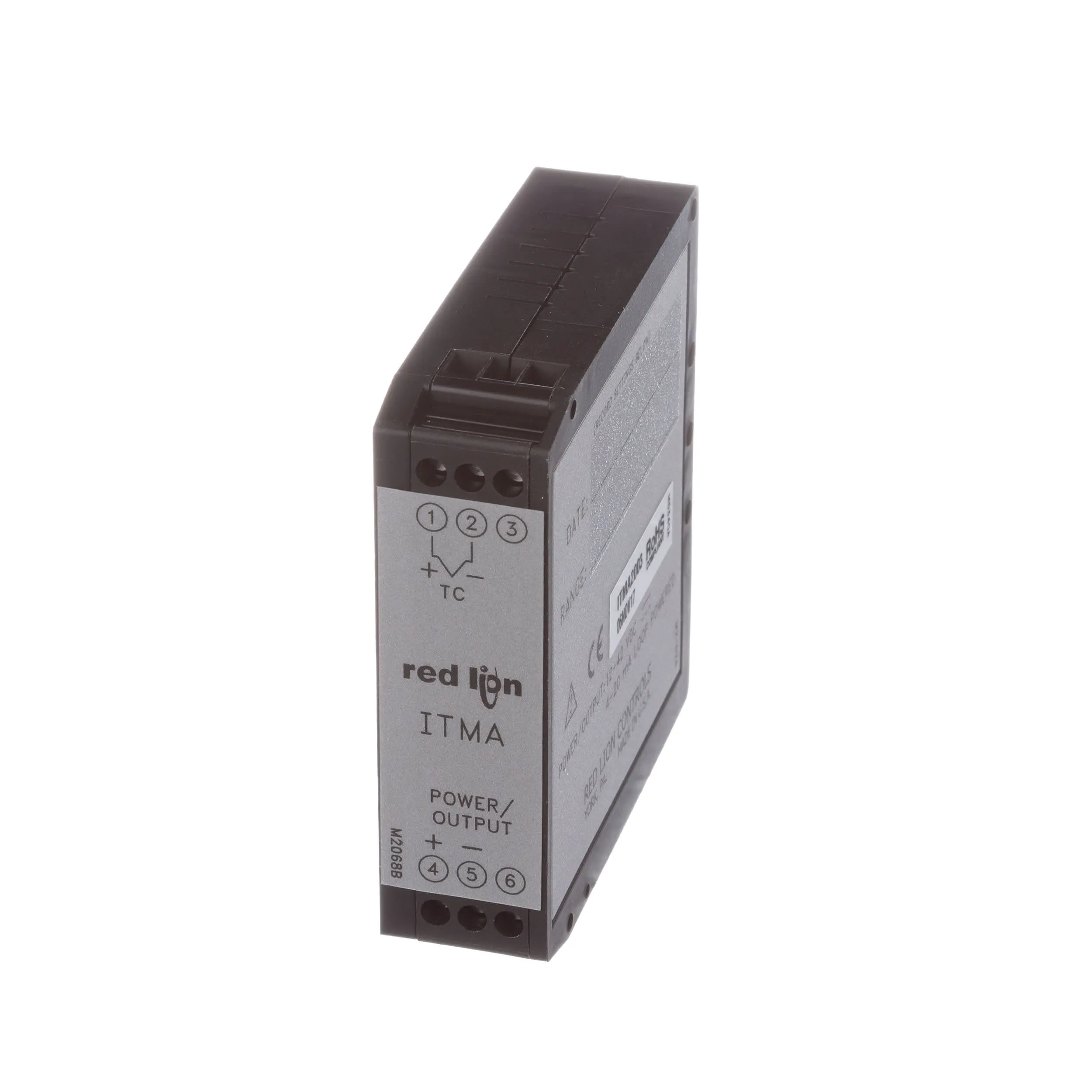

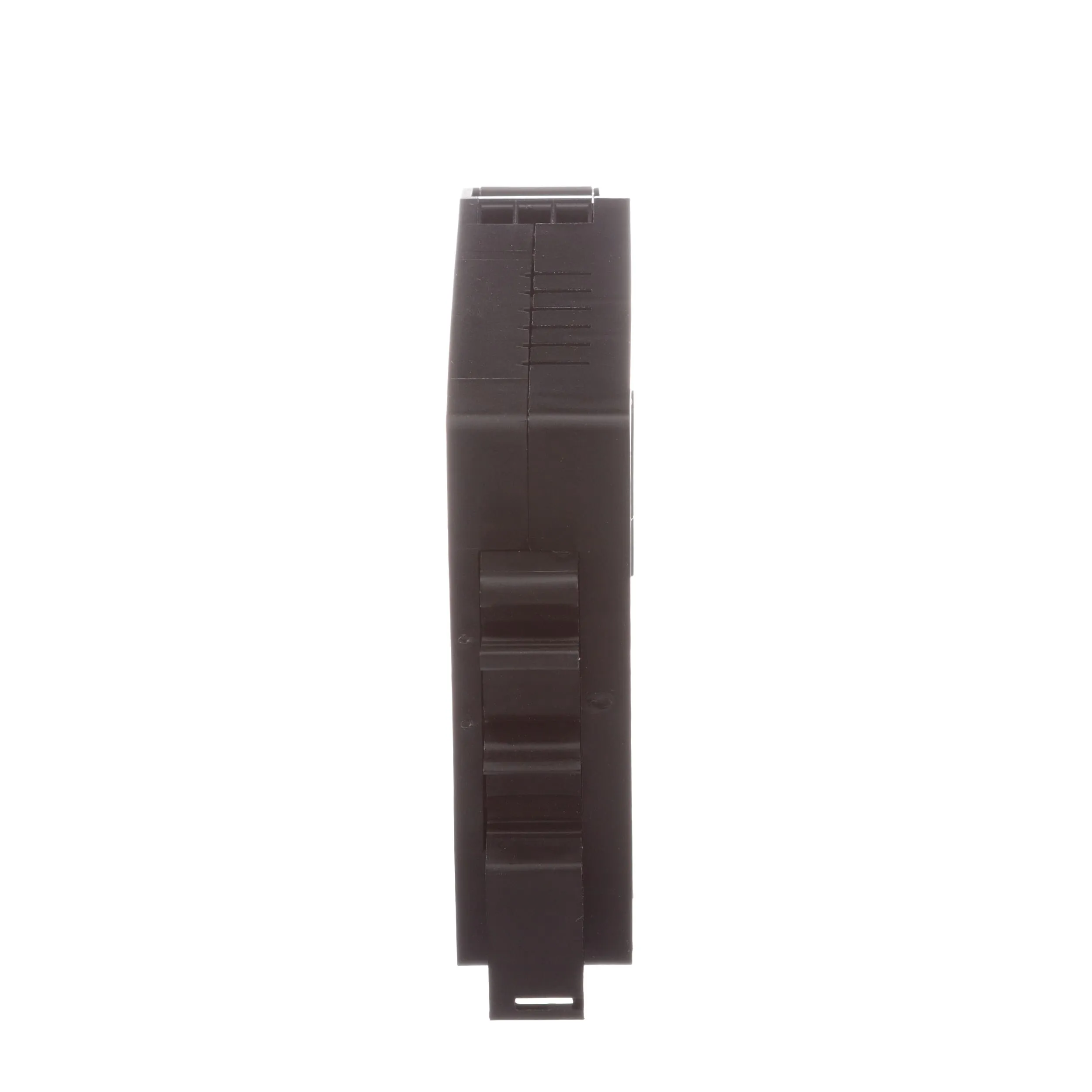

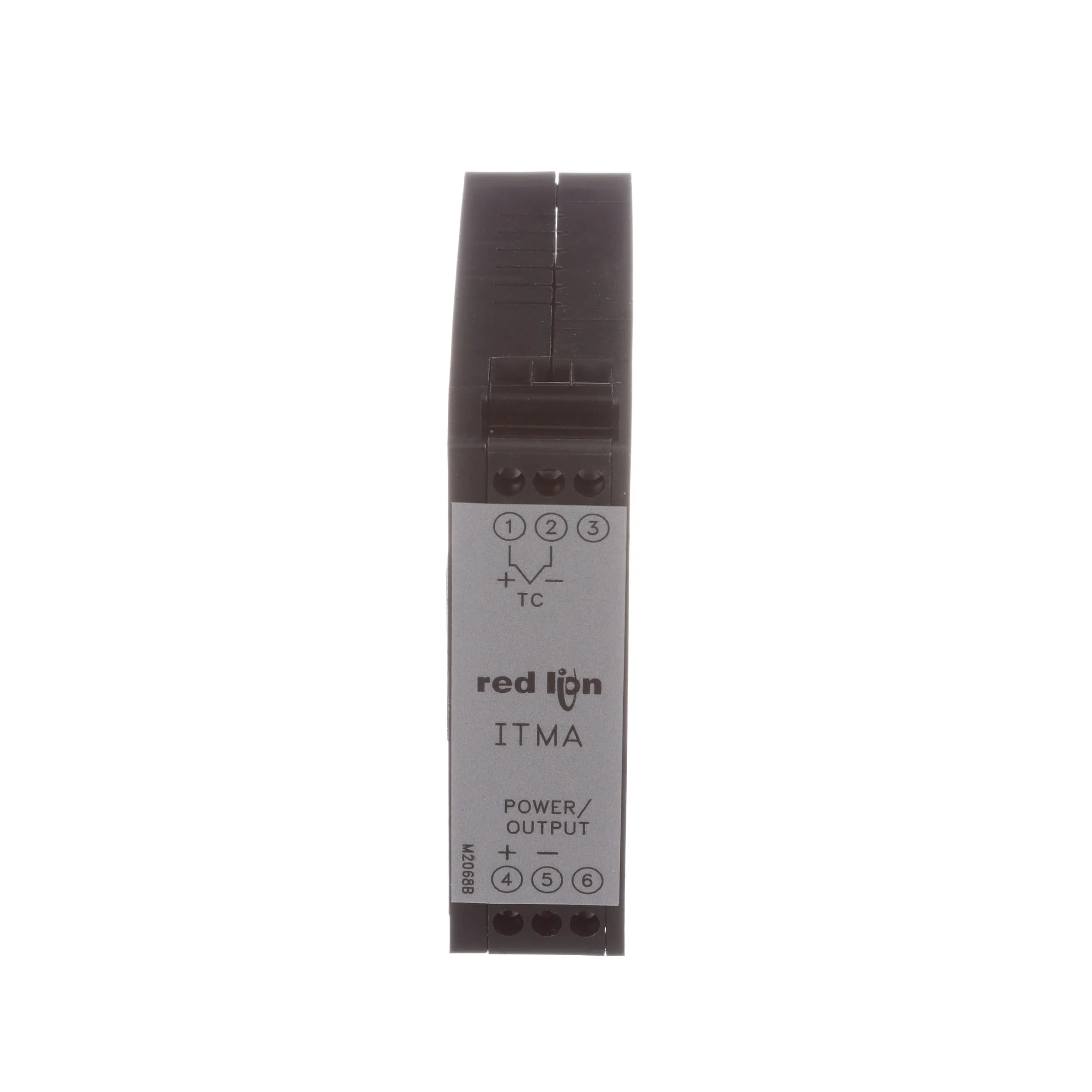

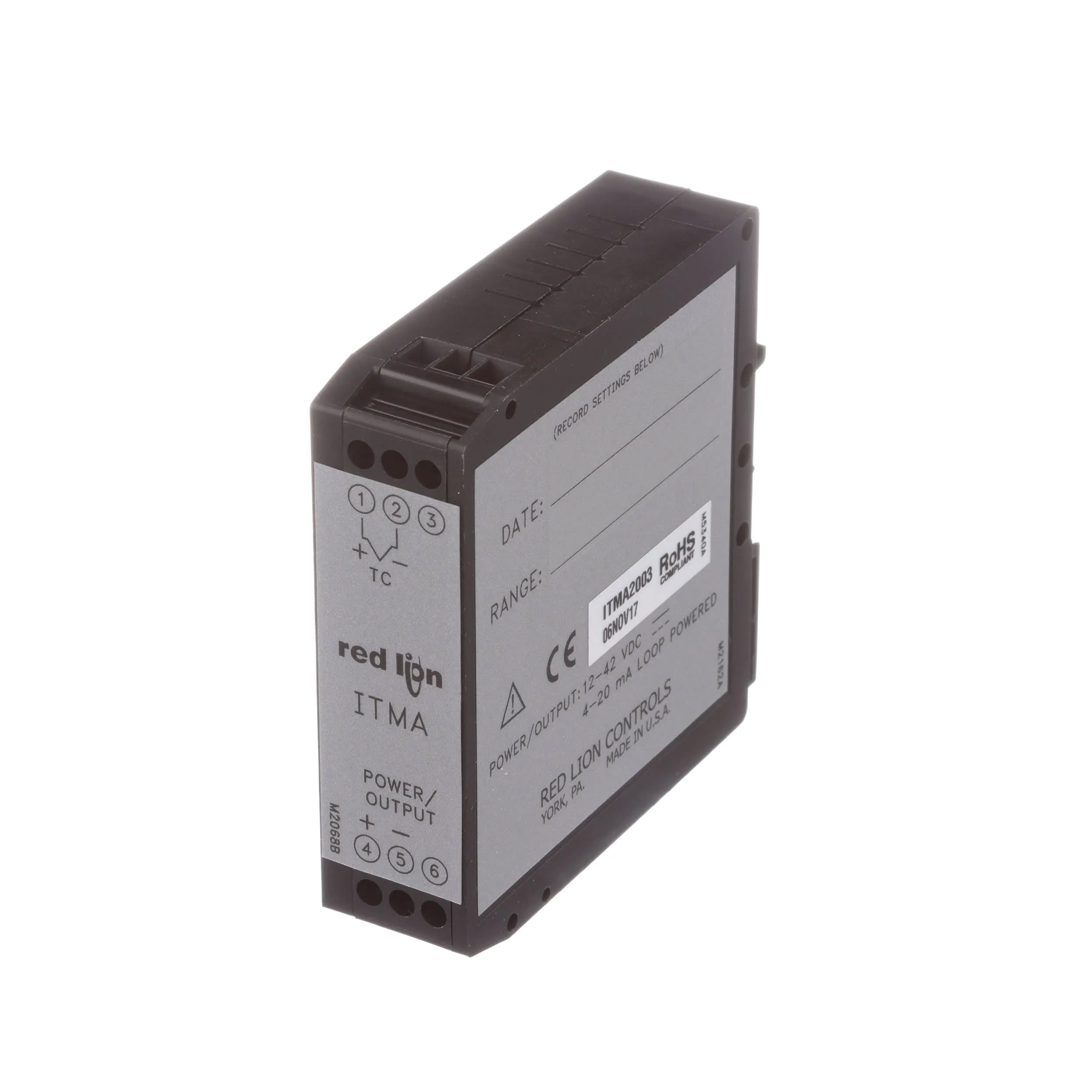

These signal conditioners accept a temperature sensor input and converts the signal to a 4 to 20 mA signal. The 4 to 20 mA signal is proportional to the temperature or millivolt signal. The ITMA accepts thermocouples sensors the IRMA RTD sensors. Both units are DIN rail mountable making installation very easy. Features:
