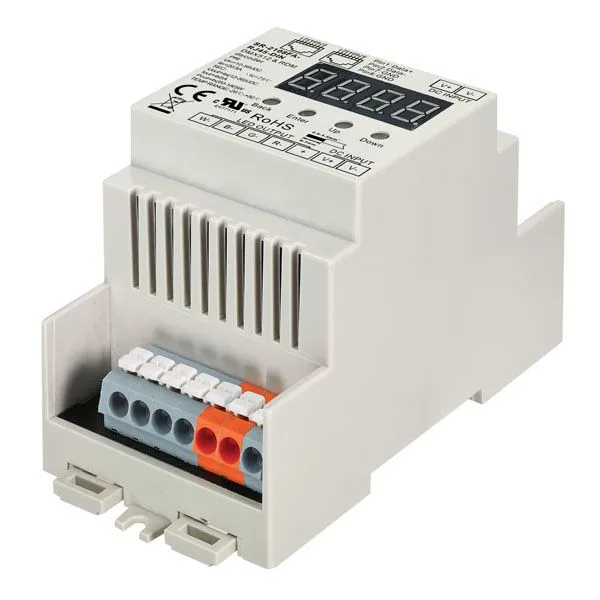

Artecta Play-III DMX Din Rail Decoder
Constant Voltage
The Play-III DMX is a din rail mounted constant voltage DMX&RDM LED controller which features full support to the latest DMX512, DMX512-A and RDM V1.0 protocols. The RDM controller is designed with 4 channels, 5A per channel constant voltage output.
The LED DMX controller is designed with easy wiring terminals without screws and RJ45 ports for data transmission.
- RDM bi-directional communication function
- Enable DMX512 master console to detect decoder information and set DMX address
- Gamma ray curves value adjustable from 0.1-9,9, logarithmic dimming and linear dimming optional
Specifications:
| Input voltage | 12 €“ 36 VDC |
| Output current | v4x5 A |
| Channels | 1, 2, 3 or 4. |
| Dimming | DMX |
| Dimensions | 106x53x65 mm |
| Operating temperature | -20 - 50°C |
| IP rating | IP20 |
