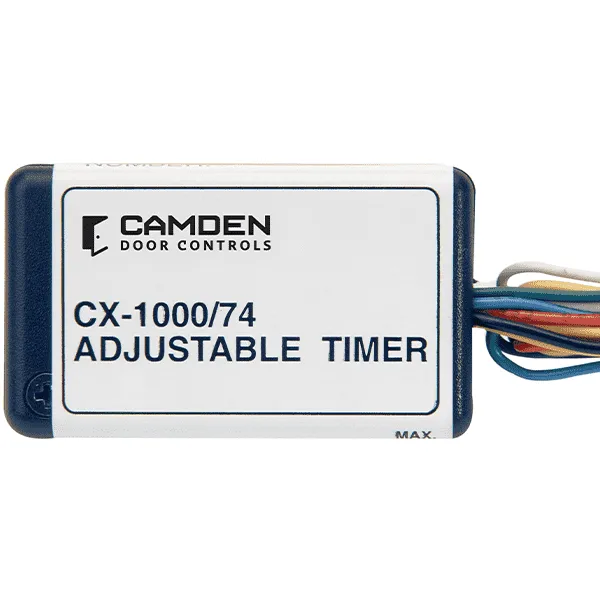

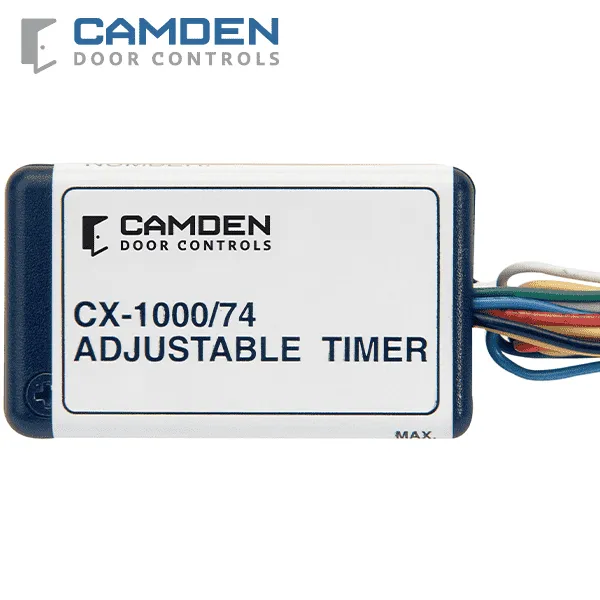

Applications: Ideal for control of automatic door operators or de-energizing electrified locks such as strike or magnetic lock. Used where AC and DC operation is required or where an unprotected circuit board timer may be subject to damage.
- Ultra compact design
- Adjustable delay from 1-30 seconds
- Color-coded leads and plastic case
- 3 year warranty
Specifications:
| Voltage: | 12/24V AC/DC |
| Current Draw: | 20 mA idle 33 mA operating |
| Response Time: | .03 Seconds |
| Input: | N/O dry contact |
| Output: | Form 'C' (SPDT) |
| Contact Rating: | 3 A @ 24 VDC |
| Electrical Life: | 100,000 @ Rated Capacity |
| Time Delay: | 1 - 30 Seconds |
| Mounting: | Double Sided Foam Tape |
| Enclosure: | Black Styrene Plastic |
