Balboa BP7 Series Control System 50-BP7-600-40-K

The Balboa BP7 Series Control System, with 7 relays and 32 setup options, can support a spa with 1 to 4 pumps, including MicroSilk systems.

BP7 Series System Capabilities:

  • 5.5 KW Stainless Steel Heater Assembly (M7 heater included)
  • Two-Speed Pump (120V or 240V)
  • Single-Speed Pump
  • Blower (120V or 240V)
  • Ozonator
  • Spa Light
  • (For circulation pumps, minimum flow of 23 GPM is required)

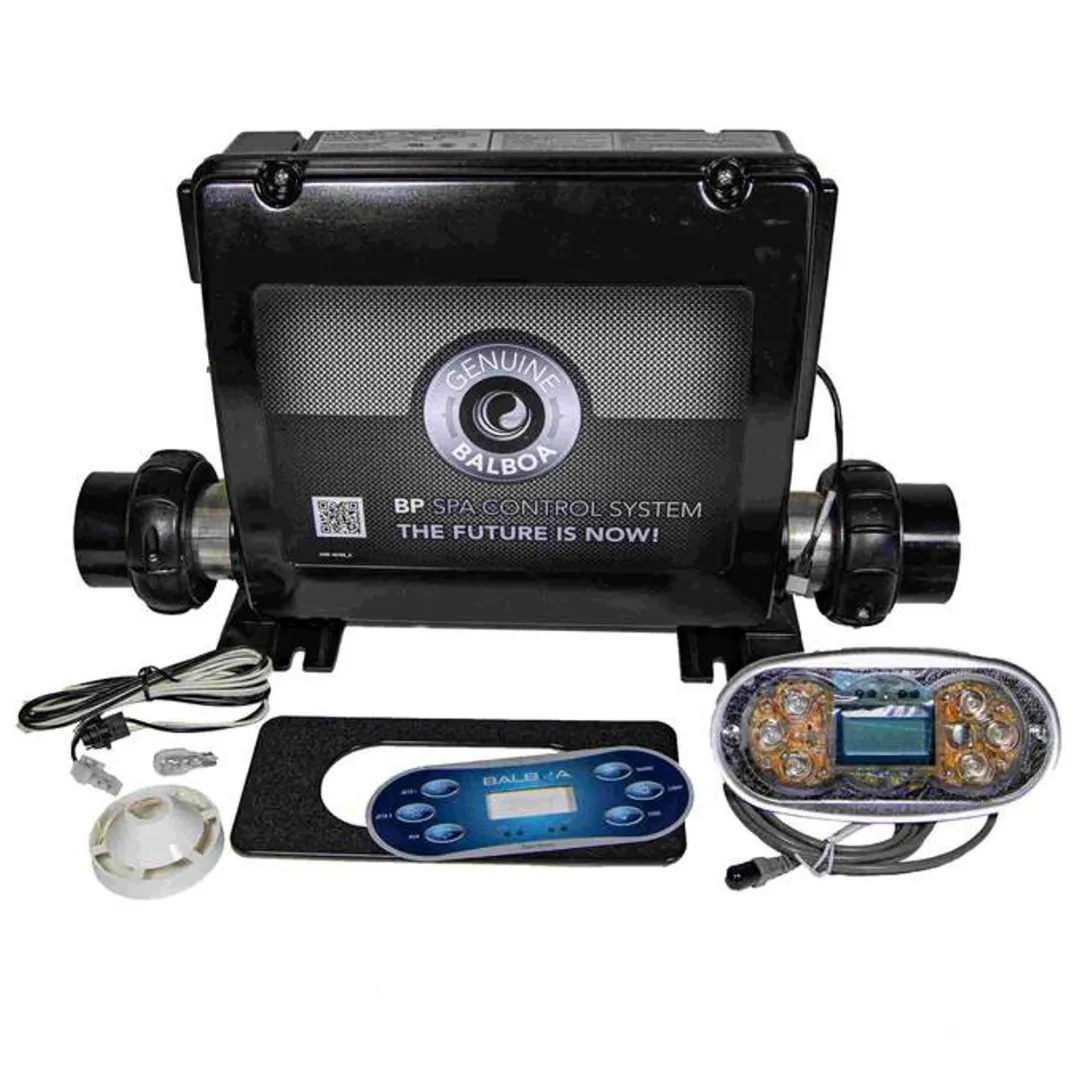

Package Includes:

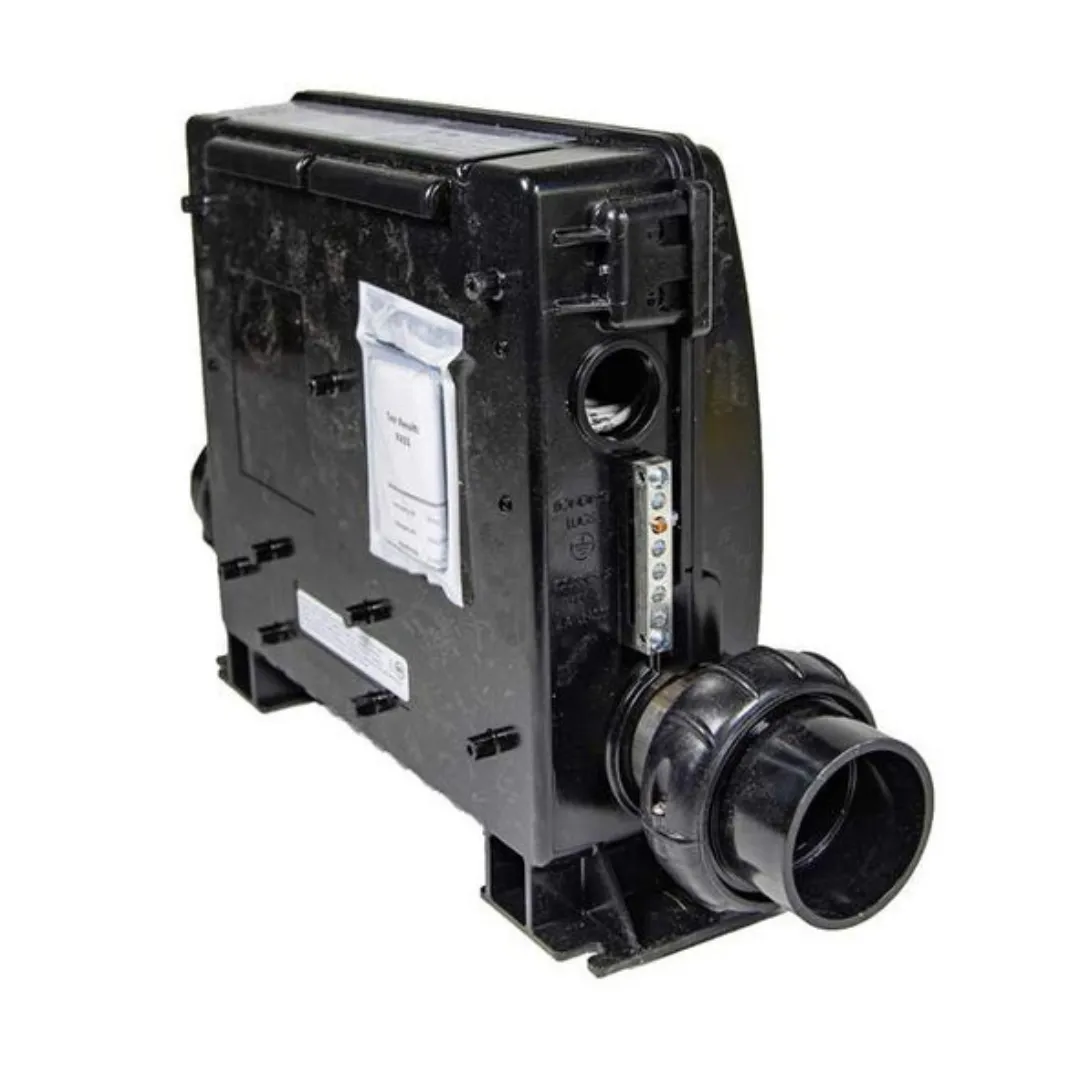

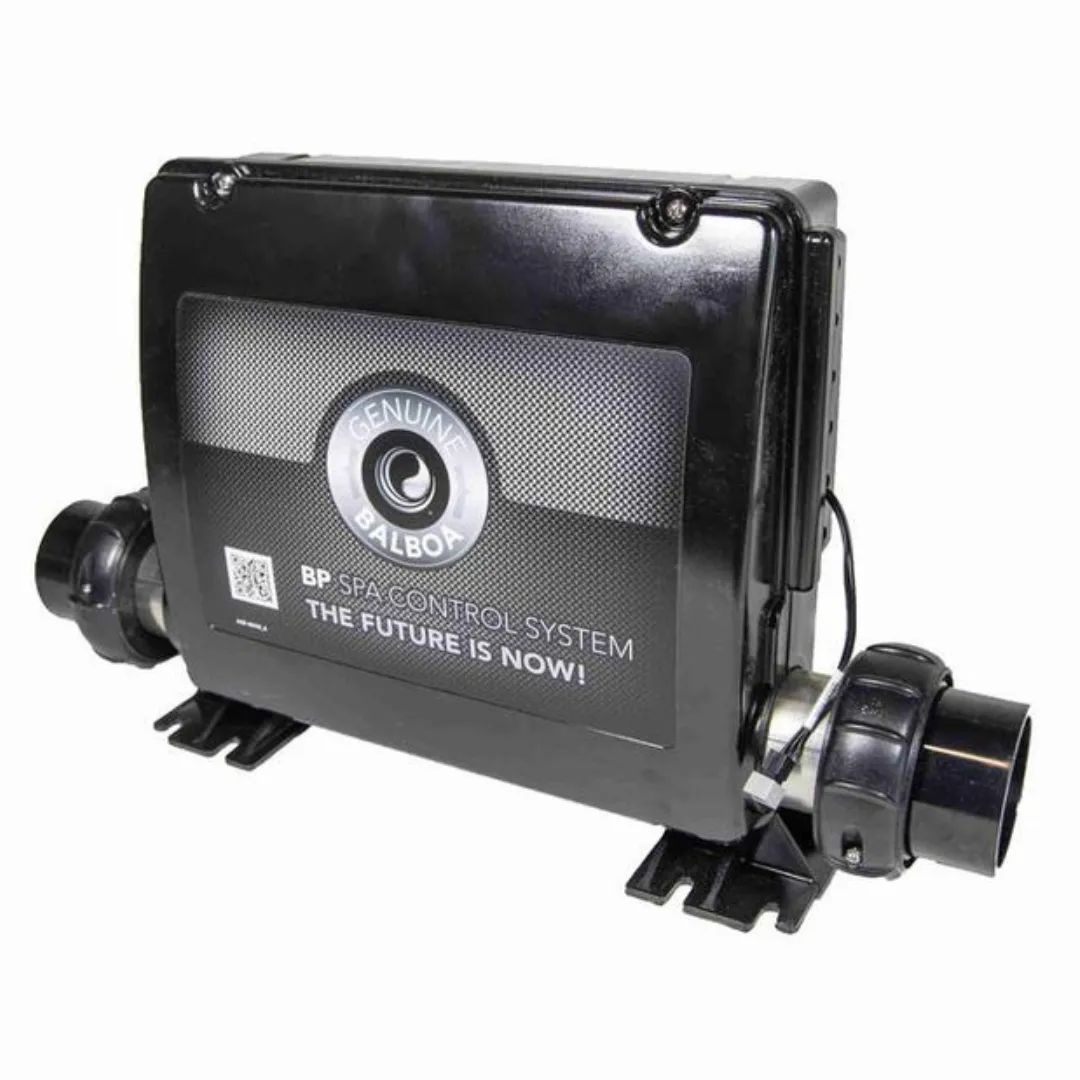

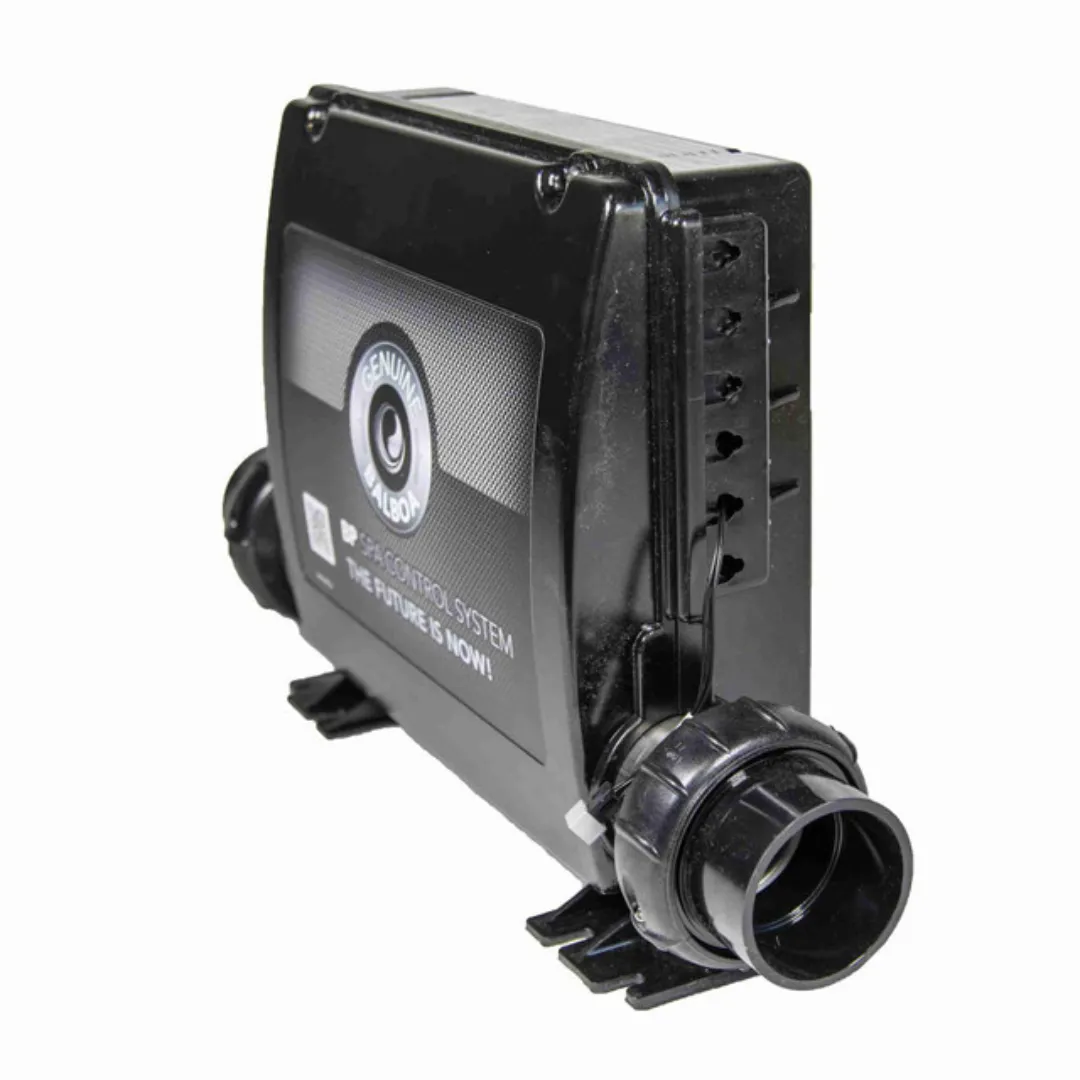

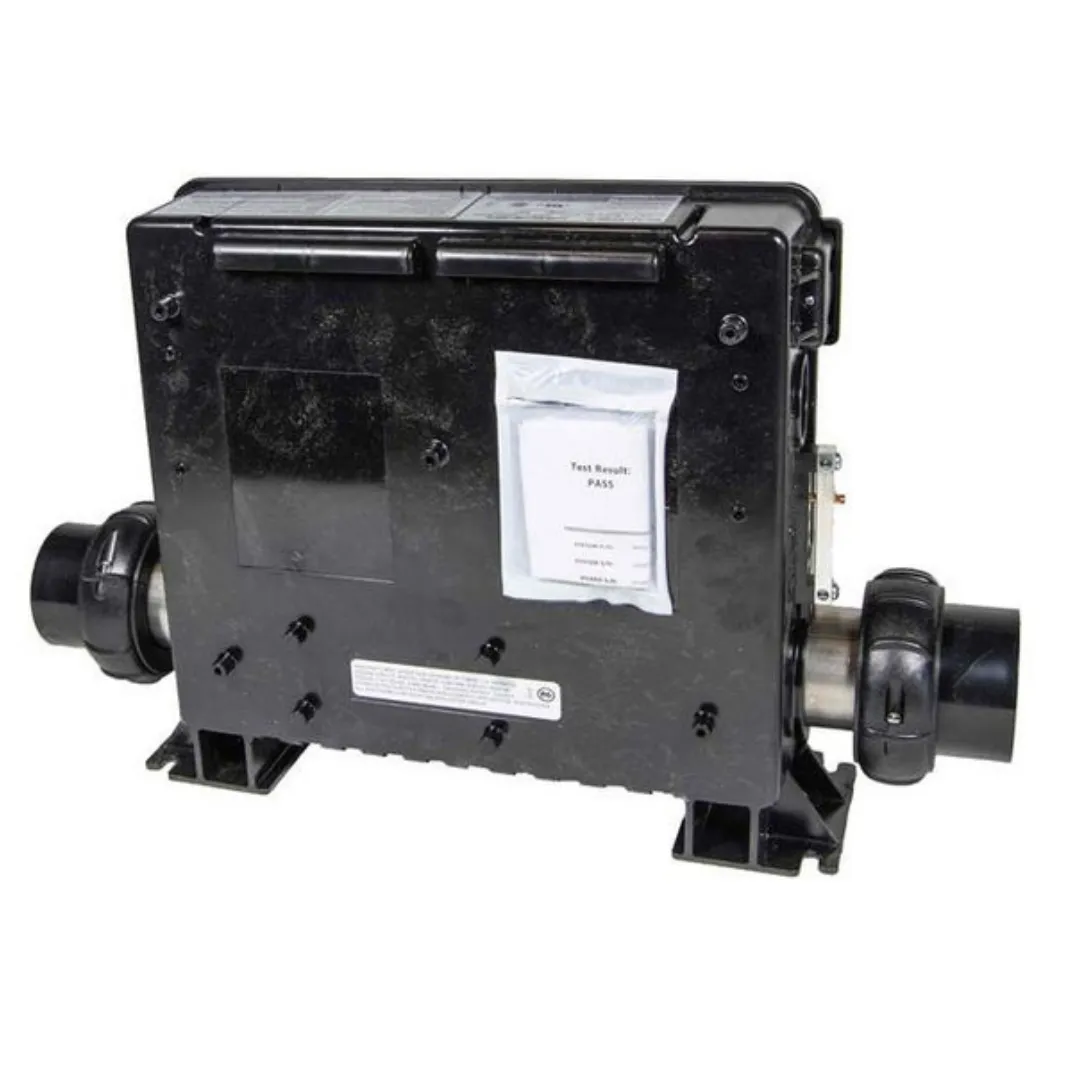

  • Control Pack (230V only)

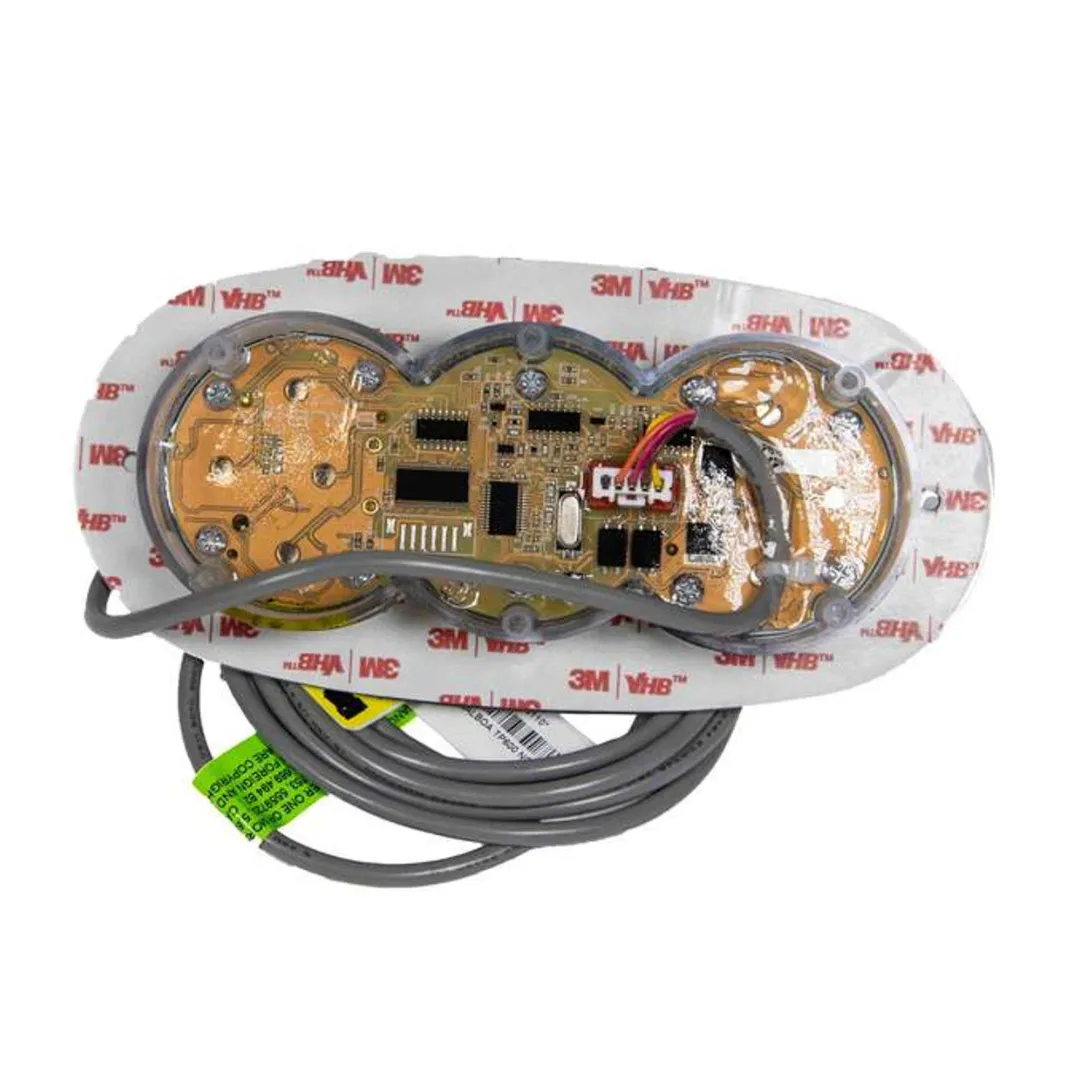

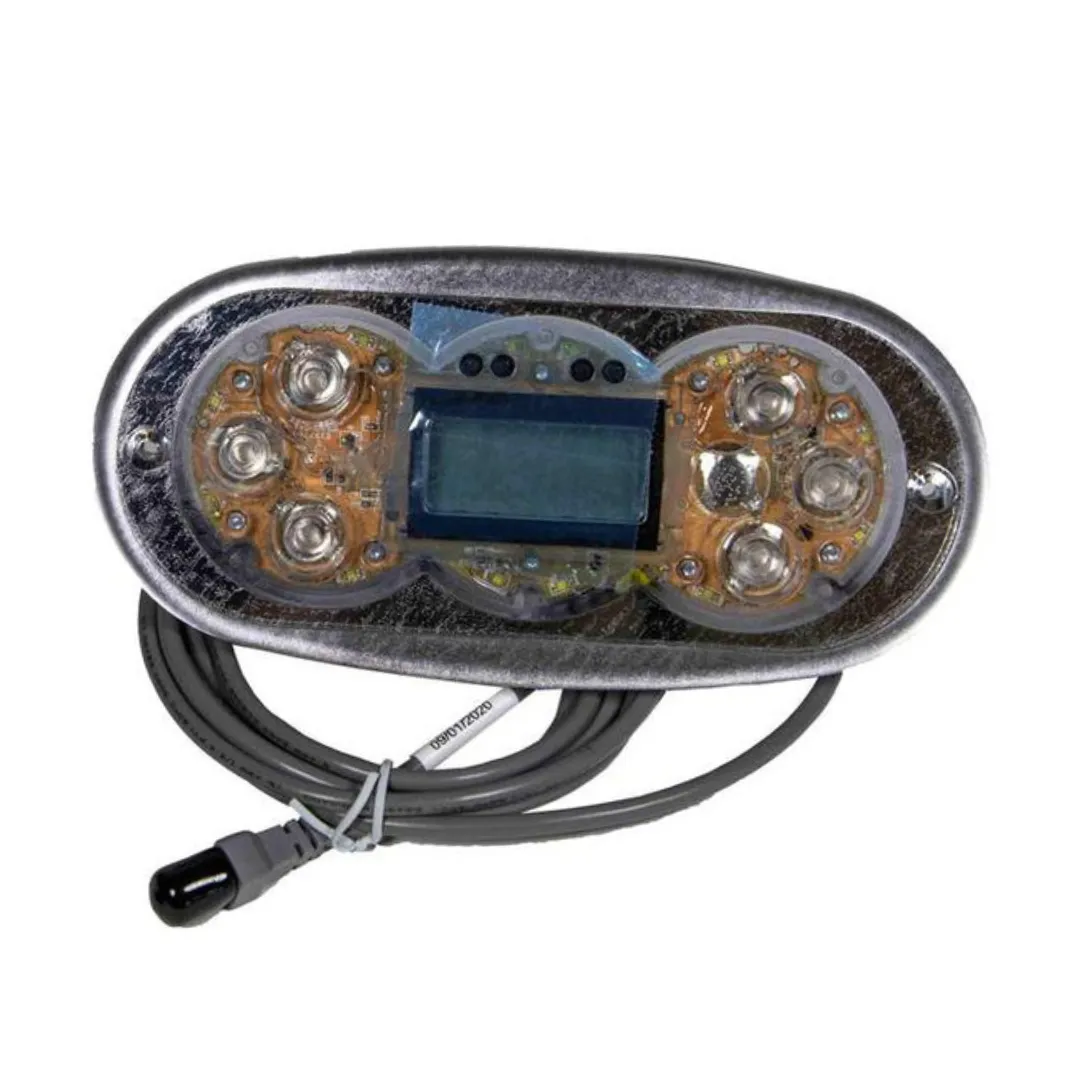

  • Balboa TP500 Top Side Control Panel (Jets, Menu, Light, Aux, Temperature Up/Down buttons)
  • Balboa Stainless Steel Heater with M7 Flow/Temperature Sensors

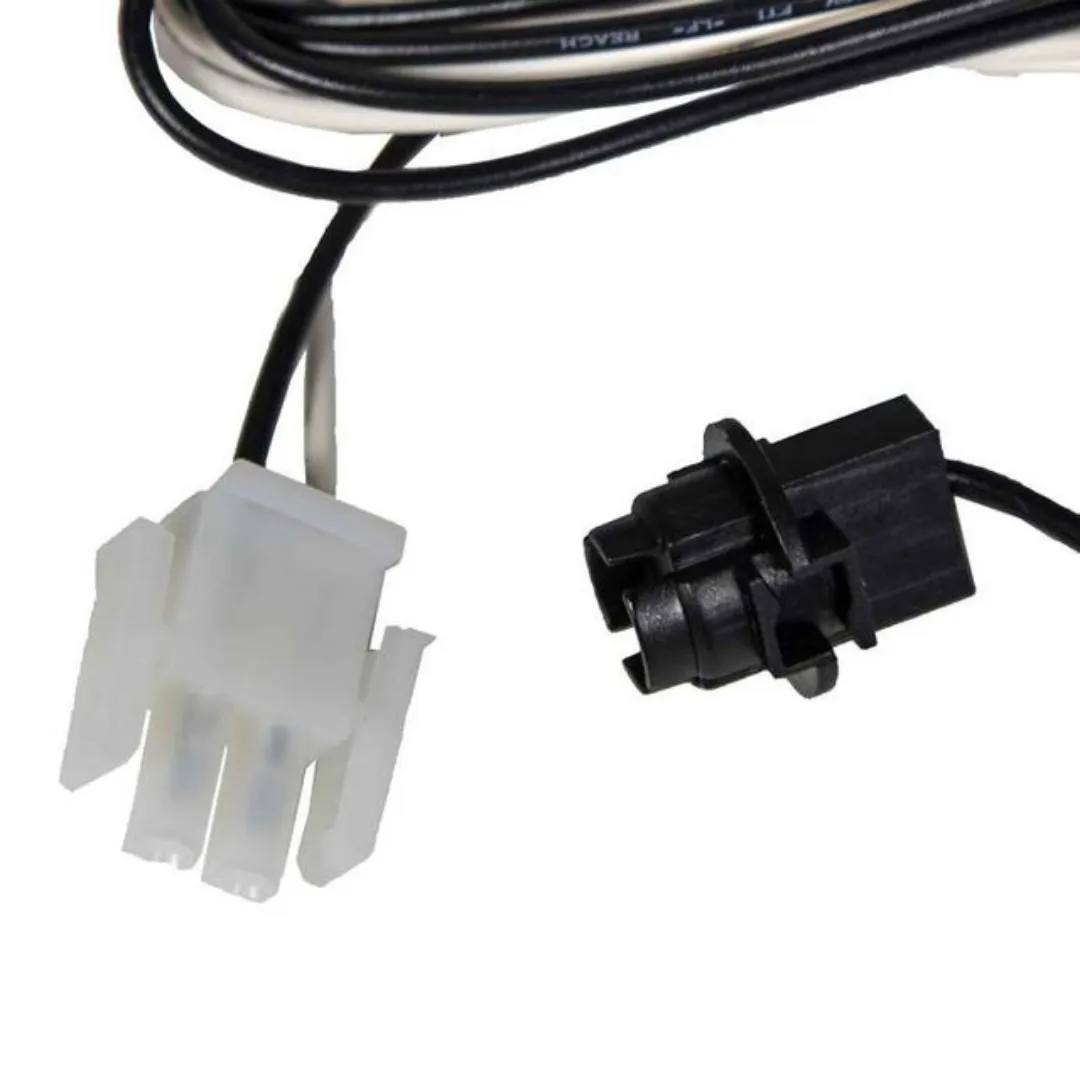

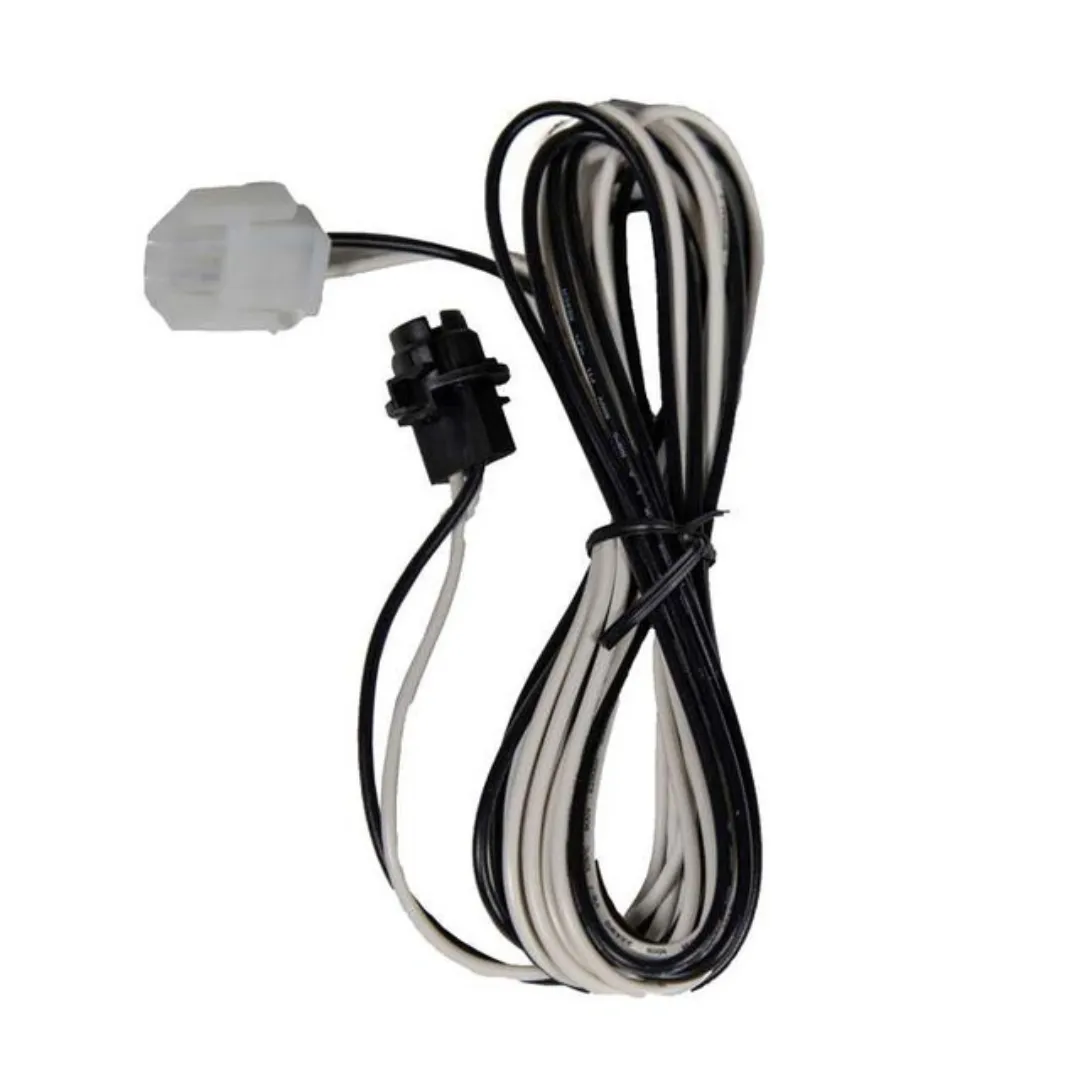

  • Light Housing Assembly (Lens and bulb not included)
  • Panel Overlay
  • Adapter Plate for Top Side Control Panel
  • (Cords for pumps, blowers, etc., sold separately)

Features and Benefits:

  • 7 relays and 32 setup configurations
  • Wi-Fi enabled
  • Supports all BP ancillary products (Control My Spa, Balboa Bluetooth Audio, Chromozon3, Status Pro)
  • Compatible with TP and SpaTouch topside panels
  • Replaces mechanical pressure/flow switches
  • Can be plumbed on either suction or pressure side of the pump
  • Convertible 120/240V power
  • Custom plastic enclosure
  • M7 flow/temperature sensors
  • Thoroughly tested with US & Canadian safety approvals

Balboa’s patented M7 technology offers superior reliability, fewer returns, and a longer lifespan than traditional systems. Balboa's innovative engineering and state-of-the-art manufacturing ensure high-quality, cost-effective, and durable products.

Patented M7 Technology Includes:

  • Smart sensor technology
  • Multiple high-limit safety systems
  • Active safety functions at all times
  • Identical sensors that monitor each other
  • No sensor installation in the spa wall
  • No pressure switch issues
  • Heater operates in optimal conditions

Heater Element and Tube:

  • Enlarged bend radius
  • Debris collection minimized
  • No welds or wire ties needed
  • Front-mounted for easy access during service

Replacement for the Following Systems: Balboa VS300, VS500Z, VS501Z, VS503SZ, VS510SZ, VS510DZ, VS511SZ, BP501G1, BP501G2, and more.
